About the BiMEP site

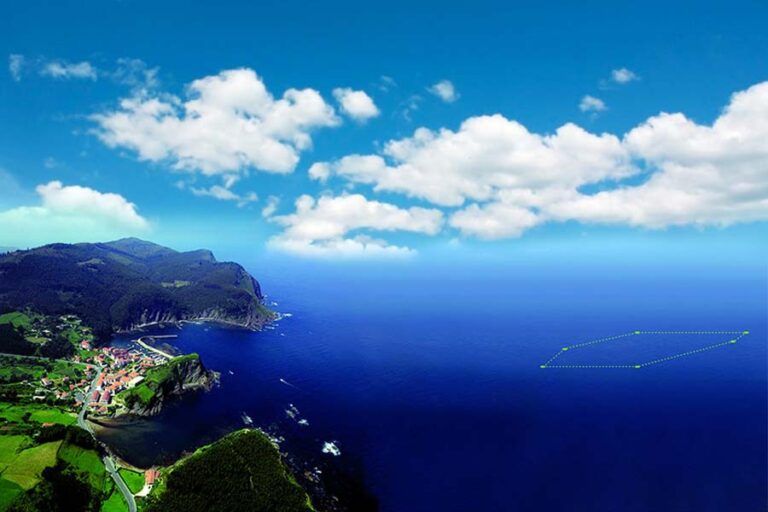

BiMEP is an infrastructure for testing prototypes of ocean energy collectors and auxiliary equipment on the open sea. It is located off the coast at Armintza.
Operating since June 2015, BiMEP provides technology developers a site with suitable wave and wind resources for testing the technical and economic viability of different concept designs, offering security before advancing to the full-scale commercial phase.
| WAVES | WIND |
| 0.16 Hs (m) 22.75 To (s) | 0 Direction (º) 0 Velocity (m/s) |

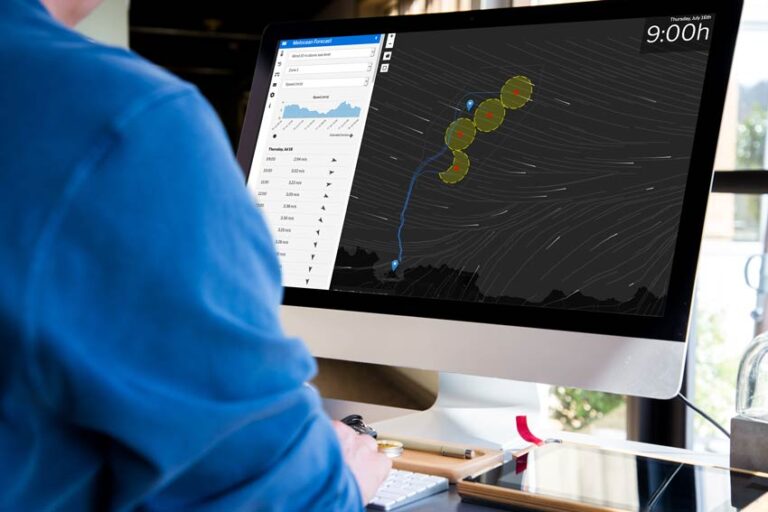

Check out our platform with resource forecast for teh test site.
Resource ForecastTechnical Characteristics

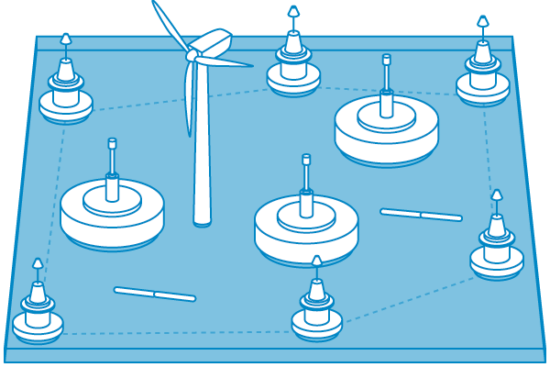

The Cantabrian Sea offers exceptional conditions for testing the effectiveness of new mechanisms and technologies for harnessing wind and wave energy.
Four 13.2 kV/5MW subsea cables fitted with optic fibre.
Onshore substation fitted with 25 MVA 13.2/132 kV transformers.
Resource measurement using an oceanographic buoy and floating Lidar system.
Dry mate subsea connectors.
Possibility of feeding in low voltage power (690 V).
Area restricted to the shipping with perimeter beacons.

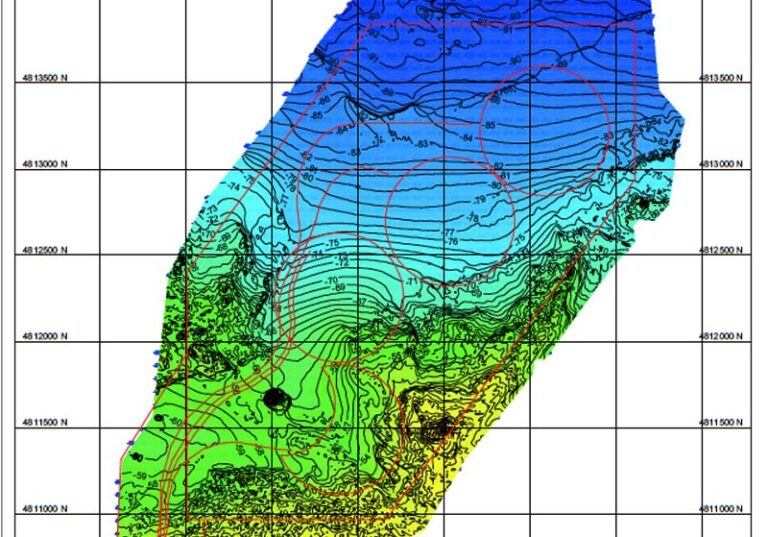

Topographical characteristics

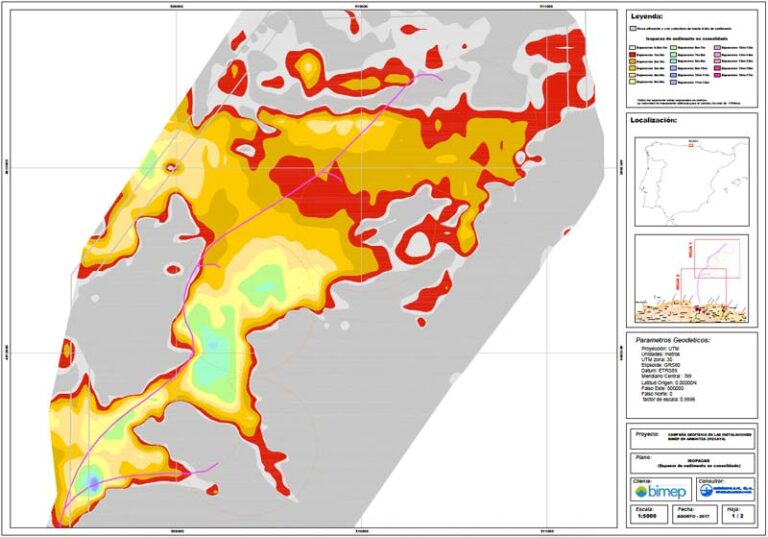

Depths at the test site range from 50 to 90 metres. The sea bed is mostly sandy with rocky areas.
Resource measurement
Historical data from the metocean buoy installed in the area since 2008 are available for downloading using the Download tool.
- Data log.
- Wave data for free surface analysys.
- BiMEP metocean analysis for offshore designs.
- Resource forecast
